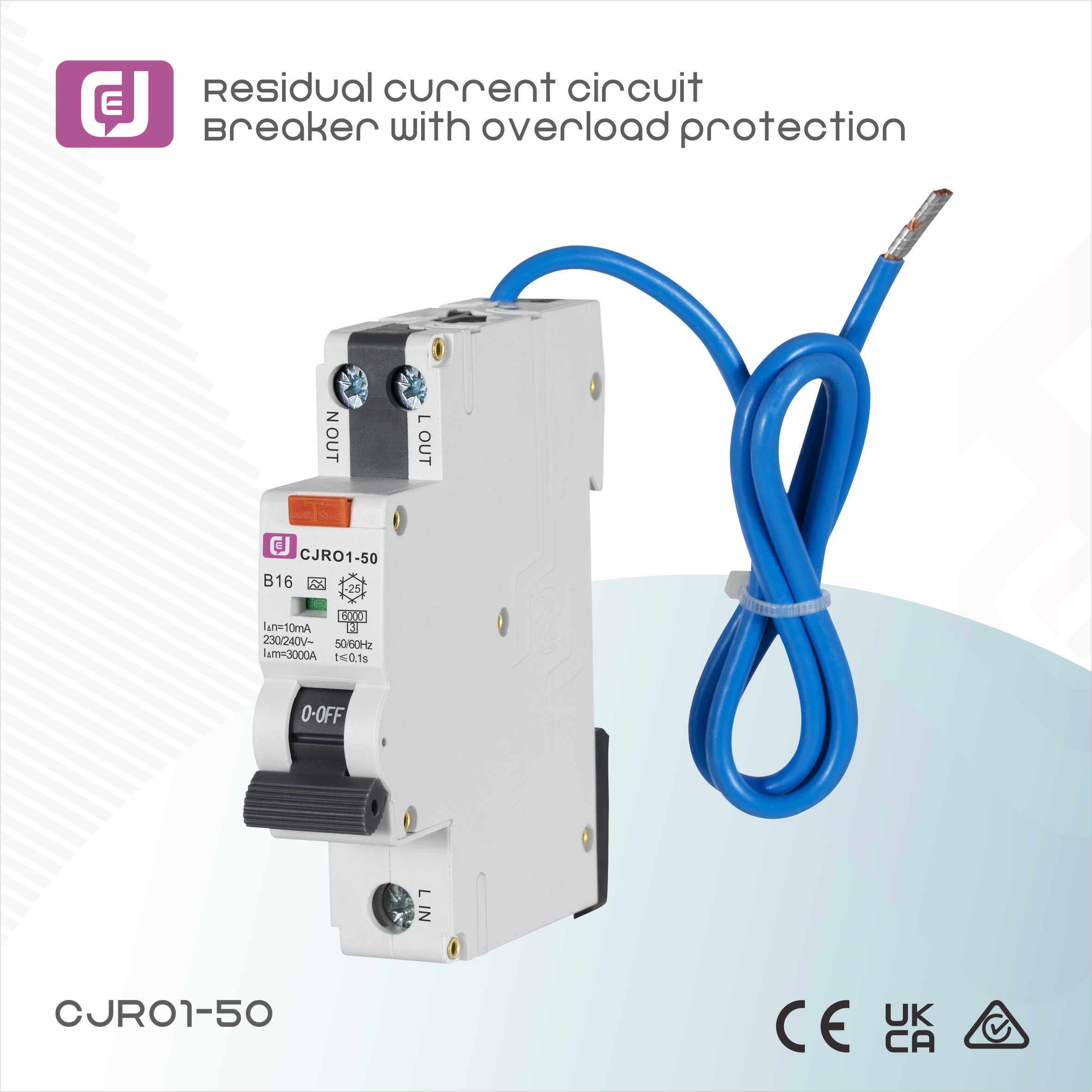

18mm Single Module RCBO 6KA 1P+N B&C Curve CJR01-50

CJR01-50 Residual Current circuit breaker with overload protection (RCBO) ensure electrical safety in homes and similar situations, such as offices and other buildings as well as for industrial applications by protecting electrical installations against leakage Current reach to 30mA and against overloads and short circuits. Once a fault is detected, the RCBO automatically switches off the electrical circuit to prevent risk to the people and prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, RCBO are equipped with AC, A type. The AC type is a common type use for homes, A type with pulse DC protection, normally the rated current is 6, 8, 10, 13, 16, 20, 25, 32, 40, 50A, leakage current protection is 10mA, 30mA, 100mA, 300mA and rated voltage is 240(230)~VAC. frequency is 50/60Hz. according to IEC/EN/AS/NZS61009. 1: 2015 standards.
